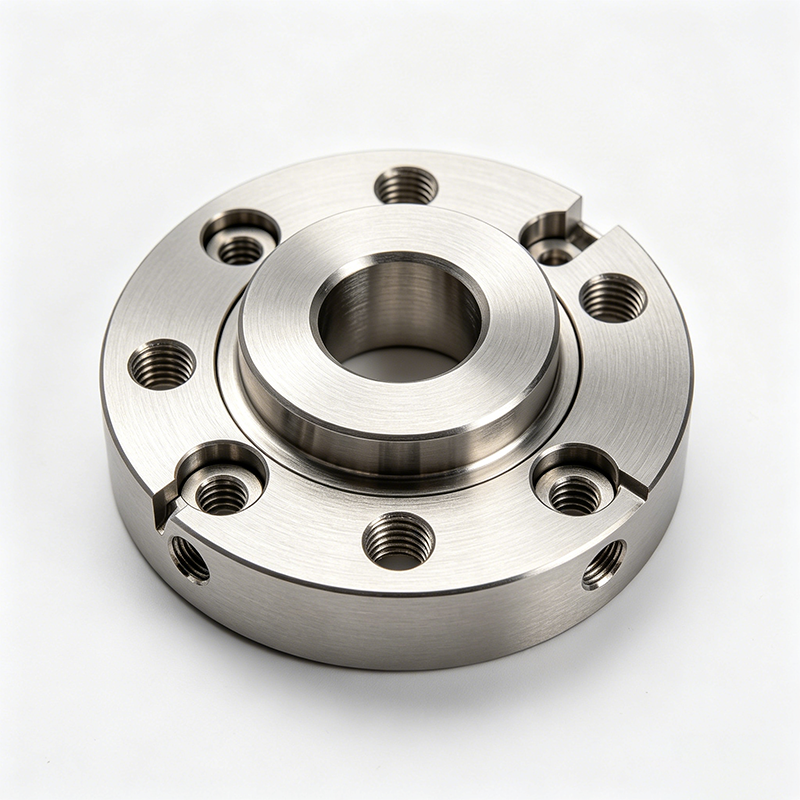

Stainless Steel CNC Parts – Technical Specifications

Corrosion Resistance 304: Excellent in most environments 316: Superior (molybdenum added for chloride resistance) 17-4PH: Good, can be heat treated for strength Surface Finishing Passivation (enha

Corrosion Resistance

  • 304: Excellent in most environments
  • 316: Superior (molybdenum added for chloride resistance)
  • 17-4PH: Good, can be heat treated for strength

Surface Finishing

  • Passivation (enhances corrosion resistance)
  • Electropolishing (smooth, bright finish)
  • Bead blasting (uniform matte)
  • Brushing (satin finish)
  • Polishing (mirror finish)

Technical Specifications

Specification Value
Grades Available 304/304L, 316/316L, 17-4PH, 303, 416, 430
Density 8.0 g/cm³
Tensile Strength (304) 515 MPa (75 ksi)
Tensile Strength (316) 579 MPa (84 ksi)
Tensile Strength (17-4PH) 895-1170 MPa (heat treated)
Hardness (304) 150 HB
Hardness (17-4PH) 334 HB (H900)
