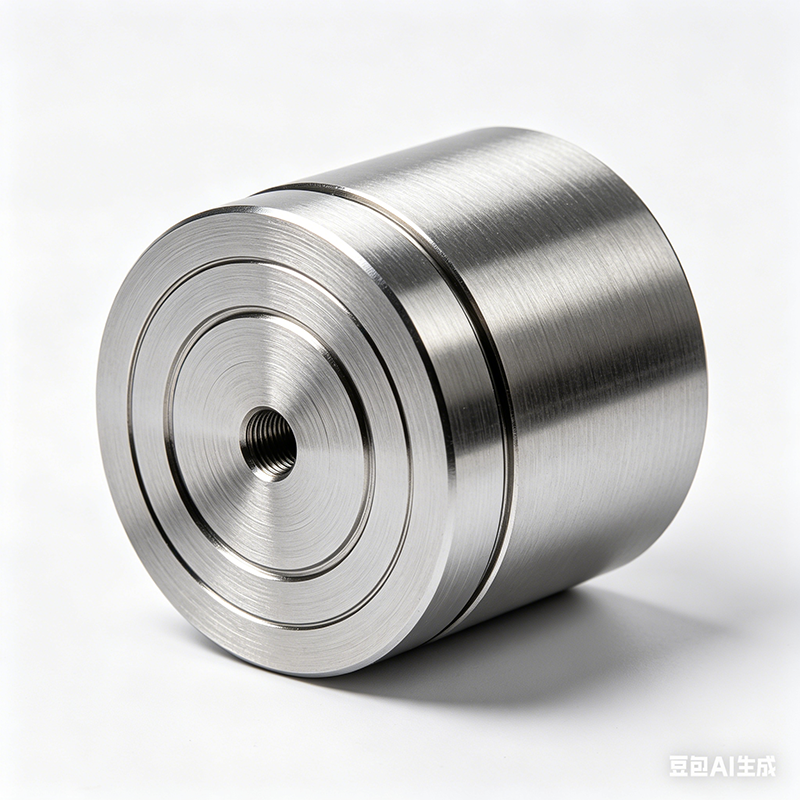

CNC Milling Parts – Technical Specifications

Available Alloys Aluminum: 6061-T6, 7075-T6, 5052-H32, 2024-T3 Stainless Steel: 304/304L, 316/316L, 17-4PH, 303 Steel: 1018, 1045, 4140, 4340 Brass: C36000, C26000, C51000 Titanium: Grade 2, Grade 5

Available Alloys

Aluminum: 6061-T6, 7075-T6, 5052-H32, 2024-T3
Stainless Steel: 304/304L, 316/316L, 17-4PH, 303
Steel: 1018, 1045, 4140, 4340
Brass: C36000, C26000, C51000
Titanium: Grade 2, Grade 5 (Ti6Al4V)

Quality Standards

ISO 9001:2015 certified manufacturing
100% dimensional inspection
Material certificates available (EN 10204 3.1)
CMM inspection reports

Technical Specifications

Specification	Value
Material Options	Aluminum (6061, 7075), Stainless Steel (304, 316), Steel, Brass, Titanium
Maximum Part Size	500 x 400 x 300 mm (19.7 x 15.7 x 11.8 inches)
Tolerance (Standard)	±0.01 mm (±0.0004″)
Tolerance (Precision)	±0.005 mm (±0.0002″)
Surface Finish (As-machined)	Ra 1.6-3.2 μm
Surface Finish (After treatment)	Ra 0.4-0.8 μm
Minimum Wall Thickness	0.5 mm (0.020″)
Minimum Feature Size	Ø0.5 mm holes, 0.5 mm slots
